INTRODUCTION
This project was driven by the need for robust, re-configurable tooling to flatten large wooden slabs intended for tables or desks. The slab flattener is composed of standard aluminum extrusions, bolt-on attachments from 80/20, and 3/4 inch medium-density fiberboard.
PROJECT SCOPE
This project required conceptual design, solid modeling, top-level assembly drawing, and fabrication drawing detailing. Bedrock Design and Craft, LLC negotiated procurement, assembly, and delivery of the parts with multiple suppliers.
TOP-LEVEL ASSEMBLY BILL OF MATERIAL
TOP-LEVEL ASSEMBLY
MAKITA ROUTER BASEPLATE
DESIGN FEATURES
The key features of the design is that it is a re-configurable platform:

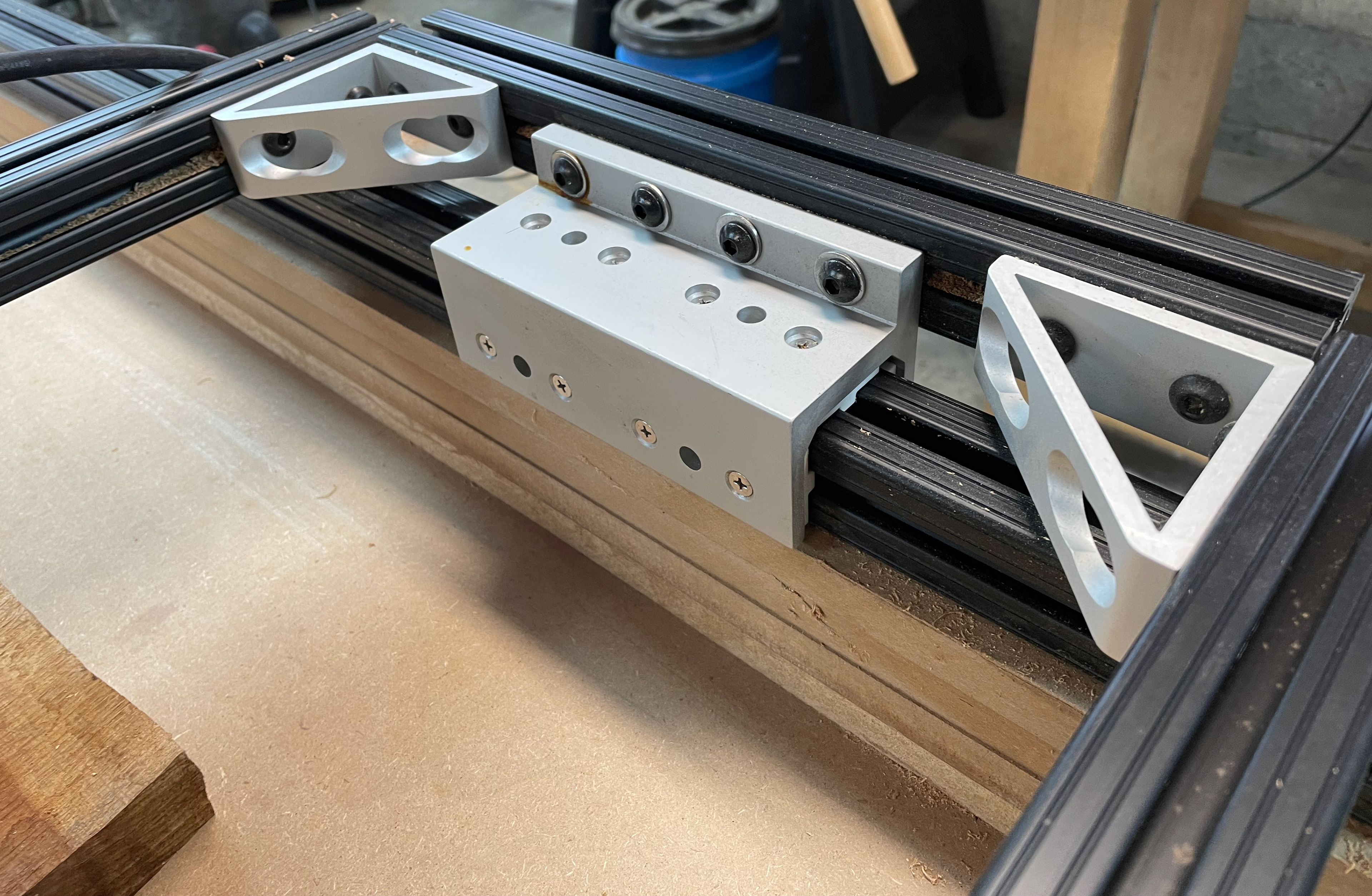

- Platform rails are adjustable to suit any slab thickness
- Use of standard extrusions enables future bolt-on functionality and automation

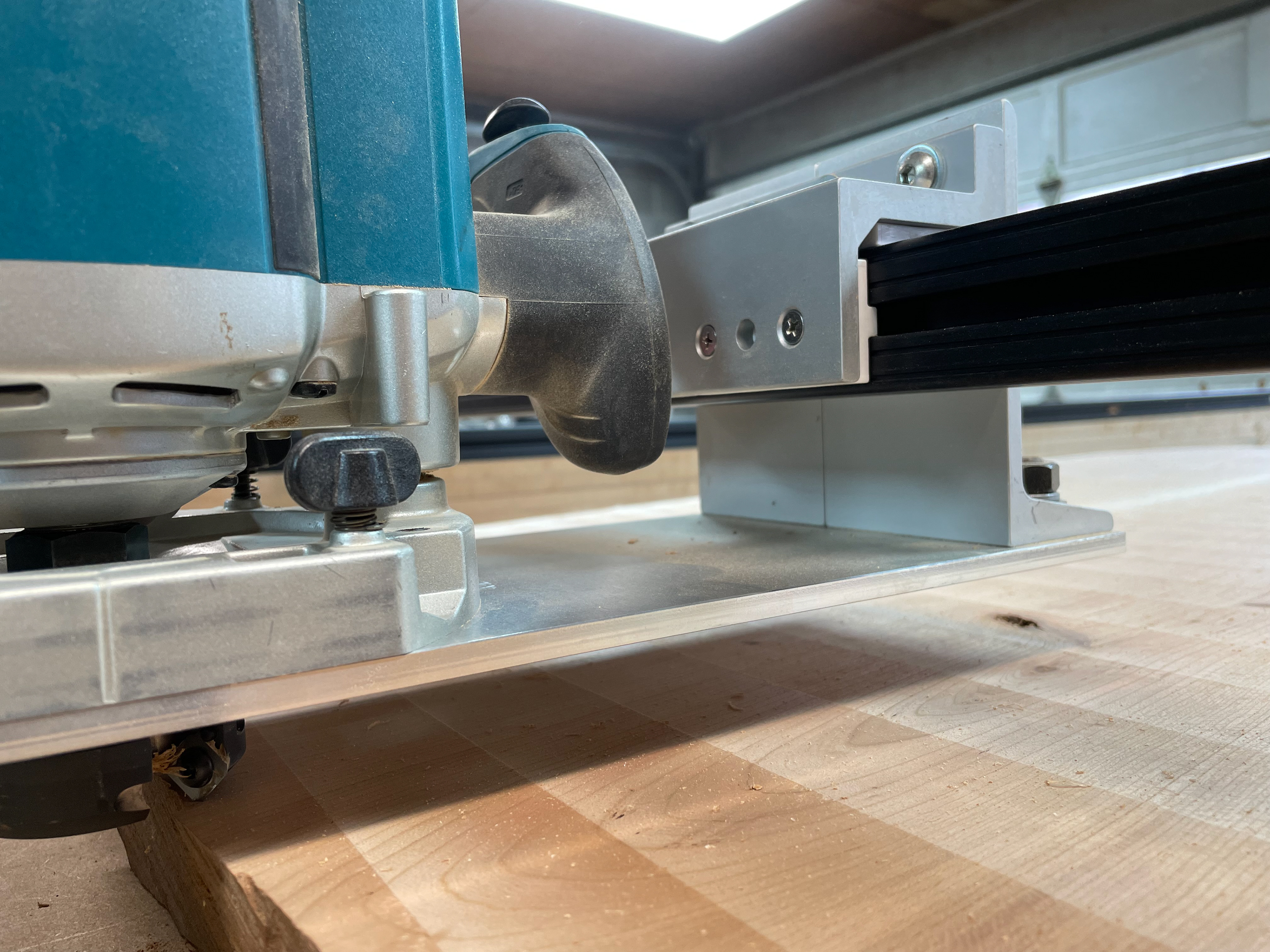

- 1/4 inch thick baseplate mounts both 80/20 frame attachment and Makita router
- Slabs up to 8 feet long and 4 ft wide can be flattened
- Use of standard extrusions enables future bolt-on functionality and automation
- 1/4 inch thick baseplate mounts both 80/20 frame attachment and Makita router
- Slabs up to 8 feet long and 4 ft wide can be flattened
